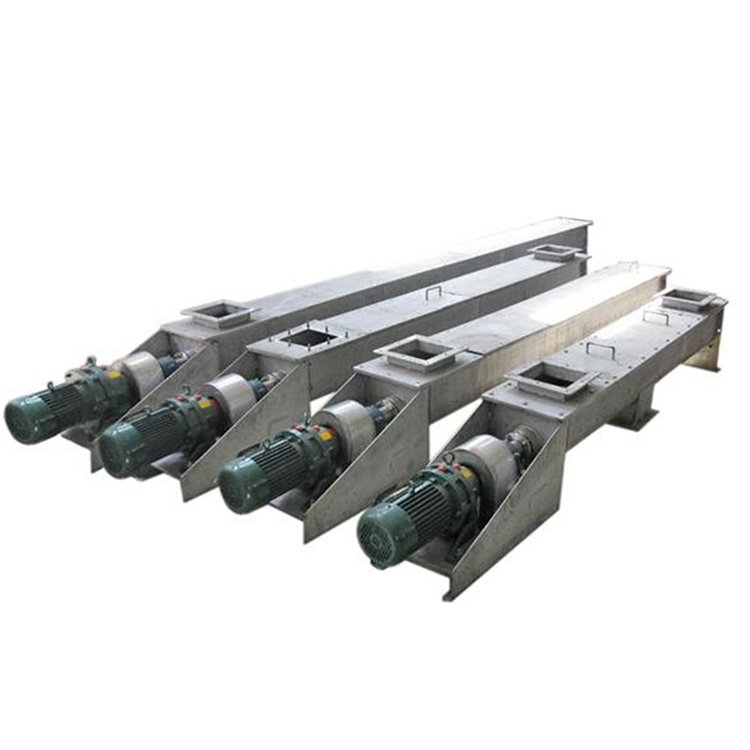

·GLS、LSY型高效螺旋輸送機 Screw conveyor

螺旋輸送機

GLS、LSY型高效螺旋輸送機 Screw conveyor

高效螺旋輸送機廣泛地使用在各種工業部門，如建材、電力、化工、冶煉、煤炭、鋁鎂、機械、輕工、糧食及食品行業，適用于水平或小于20度傾角，輸送粉狀、粒狀和小塊狀物料，如水泥、煤粉、糧食、化肥、灰渣、沙子等，物料溫度在200℃以下。國家行業標準JB/T7679。

Screw conveyors are widely used in different industrial sectors such as building material, power, chemical, smelting, coal, aluminum and magnesium, machinery, light industry, grain and food industry. They shall be installed horizontally or at an inclination angle of less than 20℃. Screw conveyors convey powdery materials, granular materials and small block materials such as cement, pulverized coal, grain, chemical fertilizer, ash and sand. The temperature of conveyed materials shall be below 200℃. National industry standard JB/T7679.

型號規格Model	產量 Capacity	功率Power	質量Weight
型號規格Model	m³/h	kw	t
GLS200	13.5	4	4.35
GLS250	23.8	7.5	4.17
GLS315	42.3	11	6.33
GLS400	68.2	22	7.46
GLS500	106.6	18.5	11.79
GLS630	151.1	37	18.52
GLS800	216.6	55	20.22
GLS1000	303.2	45	29.66
GLS1250	416.4	37	34.75
GX150通用	4.5	1.1	2.57
GX200	8.5	1.5	3.39
GX250	16.5	3	4.9
GX300	23.5	4	6.06
GX400	41	11	8.48
GX500	79	18.5	9.7
GX600	139	37	11.2
GX700	180	55
LSY160改進型	7.8	2.2	3.81
LSY200	13.5	4	4.35
LSY250	23.8	5.5	4.17
LSY315	42.3	7.5	6.33
LSY400	68.2	15	7.46
LSY500	106.6	22	11.79
LSY630	151.1	30	18.52
LSY800	216.6	45	20.22
LSY1000	303.2	55	29.66
LSY1250	416.4	75	34.75
