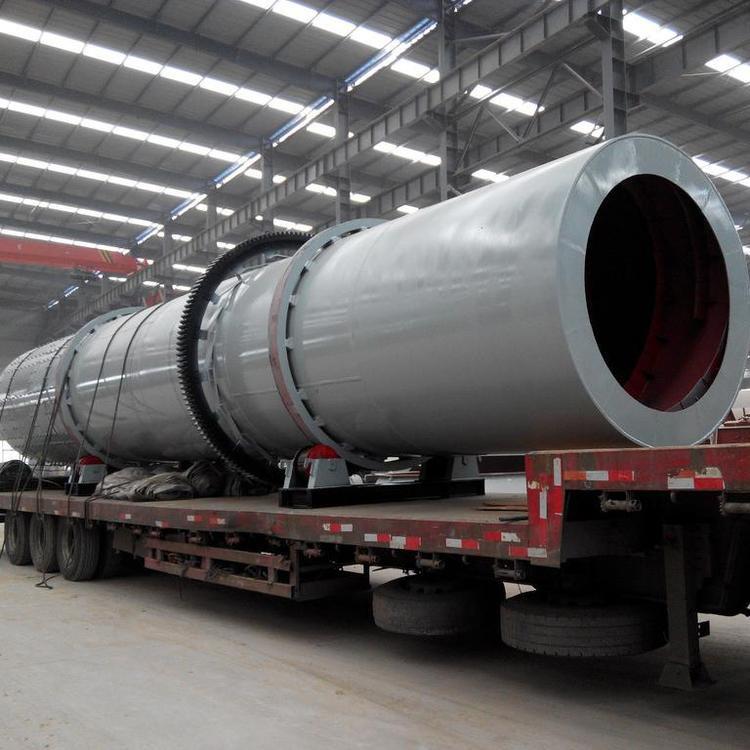

單筒冷卻機 Single Drum Cooler
單筒冷卻機是回轉窯系統中重要設備之一，單筒冷卻機的作用是將從回轉窯出來的孰料（1000-1200）通過筒體回轉帶動物料與空氣進行充分熱交換，冷卻機使物料冷卻到200以下，同時提高孰料質量和易磨性，將冷卻物料后的空氣全部入窯，作為二次循環空氣，提高了窯的熱效率。
Single drum coolers are one of the important types of equipment in rotary kiln system. Their function is to get the clinker from the rotary kiln (1000 – 1200) to drive materials to conduct full heat exchange with the air through the rotation of drum. The cooler gets the temperature of material to below 200℃. At the same time, the quality and grindability of clinker are improved. The air after the materials are cooled down all enters into the kiln to be secondary circulating air. The thermal efficiency of kiln will be improved.
單筒冷卻機具有結構簡單，運轉率高，操作維護方便等特點。
Single drum coolers have characteristics such as simple structure, high operation rate, and easy operation and maintenance.
技術參數
| 規格 | 生產能力 | 轉速 | 電機功率 | 減速機 | 總重 |
| t/h | r/min | kw | t | ||
| ф1.2×12 | 1.9-2.5 | 4.5 | 11 | ZQ50 | 22 |
| ф1.5×15 | 4-6 | 4.5 | 18.5 | ZQ65 | 33 |
| ф2×20 | 7-8 | 3 | 30 | ZL75 | 74 |
| ф2.2×22 | 10-11.5 | 3 | 30 | ZL75 | 82 |
| ф2.5×25 | 11-15 | 3.5 | 45 | ZL100 | 108 |
| ф2.8×28 | 14-17 | 3.5 | 55 | ZL100 | 142 |
| ф3×30 | 16-20 | 3.5 | 112 | ZL115 | 156 |
