QSY型實驗室解析炭再生回轉窯適用于金礦選廠炭漿法工藝中將脫水后的解析炭再生處理，綜合回收利用，亦適用冶金、化工、地質、礦山、建材、環保部門對物料進行焙燒、燒結、揮發、離析等試驗。具有自動控溫、節能、效率高等特點。

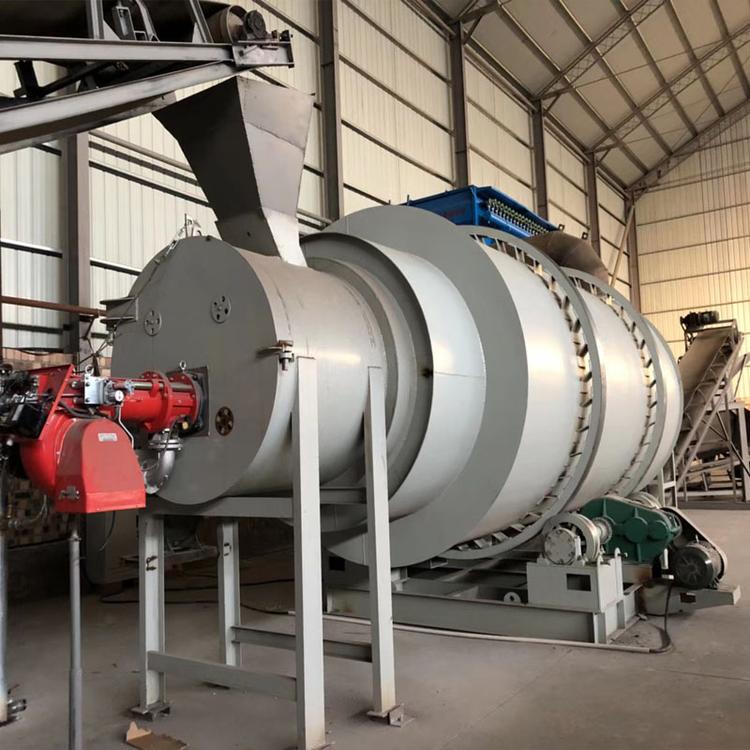

QSY Lab. Analytical Carbon Regeneration Rotary Kiln is applicable to regeneration treatment and comprehensive recovery and utilization of the dewatered analytical carbon in CIP process for beneficiation plant in gold mines. It also can be used in calcinations, sintering, volatilization, segregation and other tests and features automatic temperature control, energy conservation and high efficiency among others.
| 型號規格 Model | 單位Uite | QSY475 | QSY252 | QSY139 |
| 爐管尺寸 Furnace tube size | mm | Φ400 | Φ219 | Φ133 |
| 物料含水 Water | % | ＜40 | ＜40 | ＜40 |
| 爐管轉速Furnace tube speed | r/min | ＜3.5 | ＜3.5 | ＜3.5 |
| 工作溫度Temperature | ℃ | ≤700 | ≤810 | ≤810 |
| 筒體傾角 Shall angle | (°) | ＜3 | ＜6 | ＜6 |
| 處理能力 Capacity | kg/h | 30 | 160 | 5.5 |
| 電熱功率 Power | kw/v | 81/380 | 36/380 | 18/380 |
