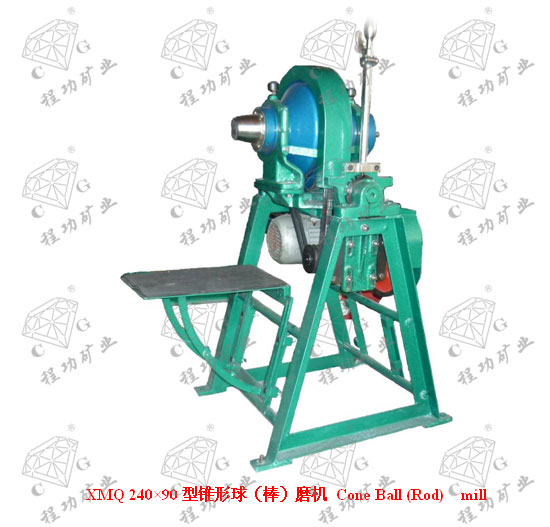

試驗室XMQ240×90型錐形球(棒)磨機技術參數

XMQ 系列錐形球磨機，是一種實驗室磨礦設備?？晒嶒炇覞穹ゼ毜V石之用（其中 150 × 50 錐形球磨機亦可用于干磨），適用于冶金、建材、化工、輕工、煤炭、水電、農業和地質實驗工作中的人工重砂、礦石技術加工等磨細物料之用。本產品由原地礦部唯一指定企業生產，執行行業標準。

XMQ Series Cone Ball Mill is a lab. grinding equipment for wet fine grinding of ore (150 × 50 Cone Ball Mill also can be used for dry grinding). It is applied in labs for processing and fine grinding of artificial placer materials and ores in metallurgical, building material, chemical, light, coal, water conservancy, electric power, agricultural and geological industries. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.

型號規格 Model	單位Uite	XMQ150×50	XMQ150×100	XMQ240×90	XMQ350×160
錐形筒體尺寸 Drum size	mm	φ150×50	φ150×100	φ240×90	φ350×160
筒體容積 Volume	L	1	3	6.25	21.58
磨礦量Capacity	g	200	400	1000	4000
給料粒度Feed size	mm	≤3	≤3	≤3	≤3
出料粒度 Output size	mm	≤0.074	≤0.074	≤0.074	≤0.074
筒體轉速 Drum speed	r/min	112 ± 2	112 ± 2	96 ± 2	62 ± 2
電機功率 Power	kw	0.25	0.25	0.55	1.1
外形尺寸Voerall dimensions	mm	915×530×1160	915×750×1160	1050×640×1164	700×575×1190
重量 Weight	kg	90	130	170	300
